Subsea Installation

2 x 10kg (Dry Weight) Sand Bags filled with River Sand packed in a 2Te bulka bag closed top

2 x 20kg (Dry Weight) Sand Bags filled with River Sand packed in a 2Te bulka bag Closed top

316 ROV Square Cutter 50mm

MODSYN 105 FLOAT 44KG x 2000M
- Diameter: 592mm.
- Complete with 4x flats, 130mm diameter.
- Length: 542mm x 578mm.
- Central hole: 40mm diameter.
- Rotary Moulded Polyethylene Shell, 6mm thick.
- Syntactic Foam Core, density approximately 565kg/cu.m.
- Colour: Yellow.
- Approximate Weight: 62kg.
- Approximate Nett Buoyancy (in Sea Water): 41kg.
- Depth Rating: 2000m.

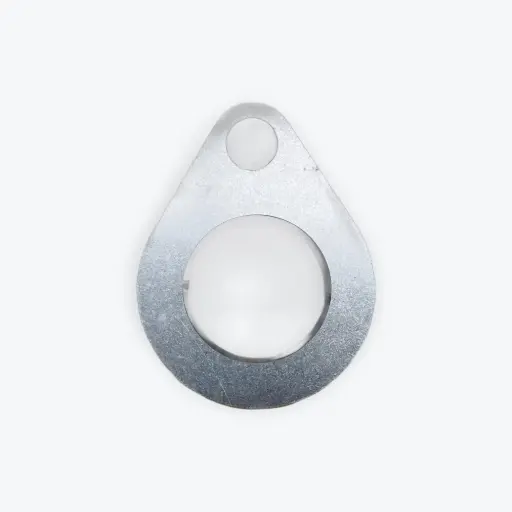

SS304 Round Cut Washers ID 40mm

SS304 Round Cut Washers ID 60mm

SS316 ROV Square Cutter 75mm

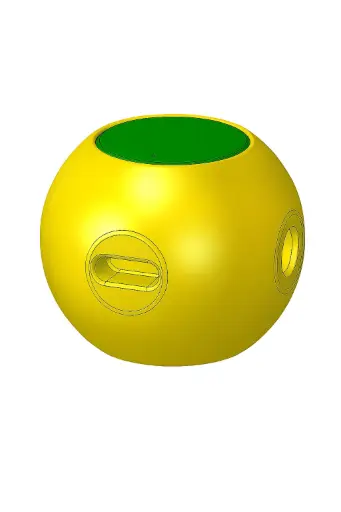

MODSYN 59 FLOAT 23KG x 2000M
- Diameter: 490mm.
- Complete with 4x flats, 130mm diameter.
- Length: 432mm x 476mm
- Central hole: 40mm diameter.
- Rotary Moulded Polyethylene Shell, 6mm thick.
- Syntactic Foam Core, density approximately 565kg/cu.m.
- Colour: Yellow.
- Approximate Weight: 35kg.
- Approximate Nett Buoyancy (in Sea Water): 22.1kg.

Release & retrieve ROV shackle (grade 8) with tapered pin and D-handle, painted: bow white, pin green, grade 8, diameter bow 28 mm, diameter pin 32 mm, WLL 9.5 t.

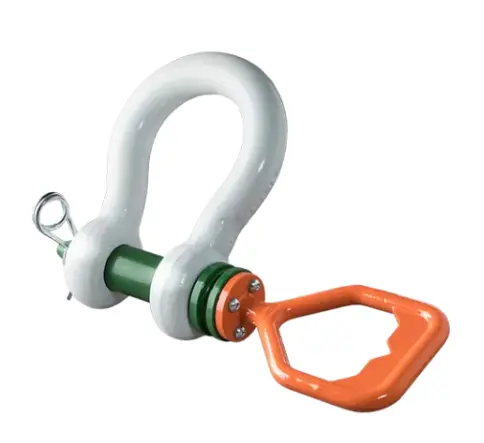

Release & retrieve ROV shackle (grade 8) with tapered pin and D-handle, painted: bow white, pin green, grade 8, bow white, pin green, grade 8, diameter bow 32 mm, diameter pin 35 mm, WLL 12 Te

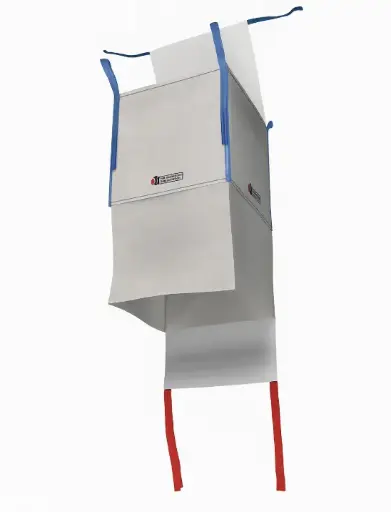

Bottom Full Drop Flap
Safety Factor 5:1
SWL 1000kg
