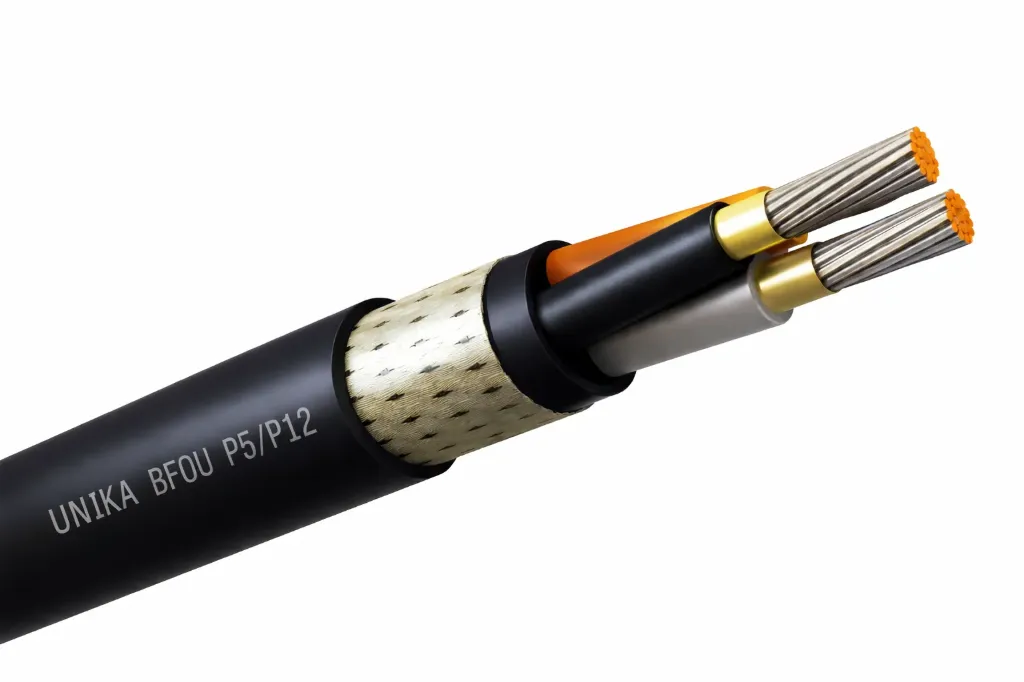

The BFOU Type P5/P12 0.6/1 kV cable is a premium marine and offshore power cable designed for critical applications where fire resistance, safety, and reliability are essential. Engineered with halogen-free, flame-retardant, and low-smoke materials, this cable ensures safe operation in hazardous environments such as offshore oil platforms, drilling rigs, and marine vessels.
This cable features tinned annealed stranded copper conductors for excellent conductivity and corrosion resistance in marine environments. The insulation system combines mica glass tape with Ethylene Propylene Rubber (EPR), providing superior fire resistance and circuit integrity during fire conditions. Additionally, the cable is protected with tinned copper wire braid armour and a mud-resistant SHF thermoset outer sheath, making it suitable for installations exposed to drilling fluids and harsh offshore conditions.
Key Features
Rated Voltage: 0.6/1 kV
Fire Resistant Construction: Maintains circuit integrity during fire
Halogen Free & Low Smoke: Enhanced safety and reduced toxic emissions
Flame Retardant: Meets IEC 60332-3-22 Cat A requirements
Mud Resistant Outer Sheath: Designed for offshore drilling environments
Copper Wire Braid Armour: Provides mechanical protection and shielding
Mica Glass + EPR Insulation: Superior thermal and fire resistance
Temperature Range: −15°C to +90°C (standard operation)
