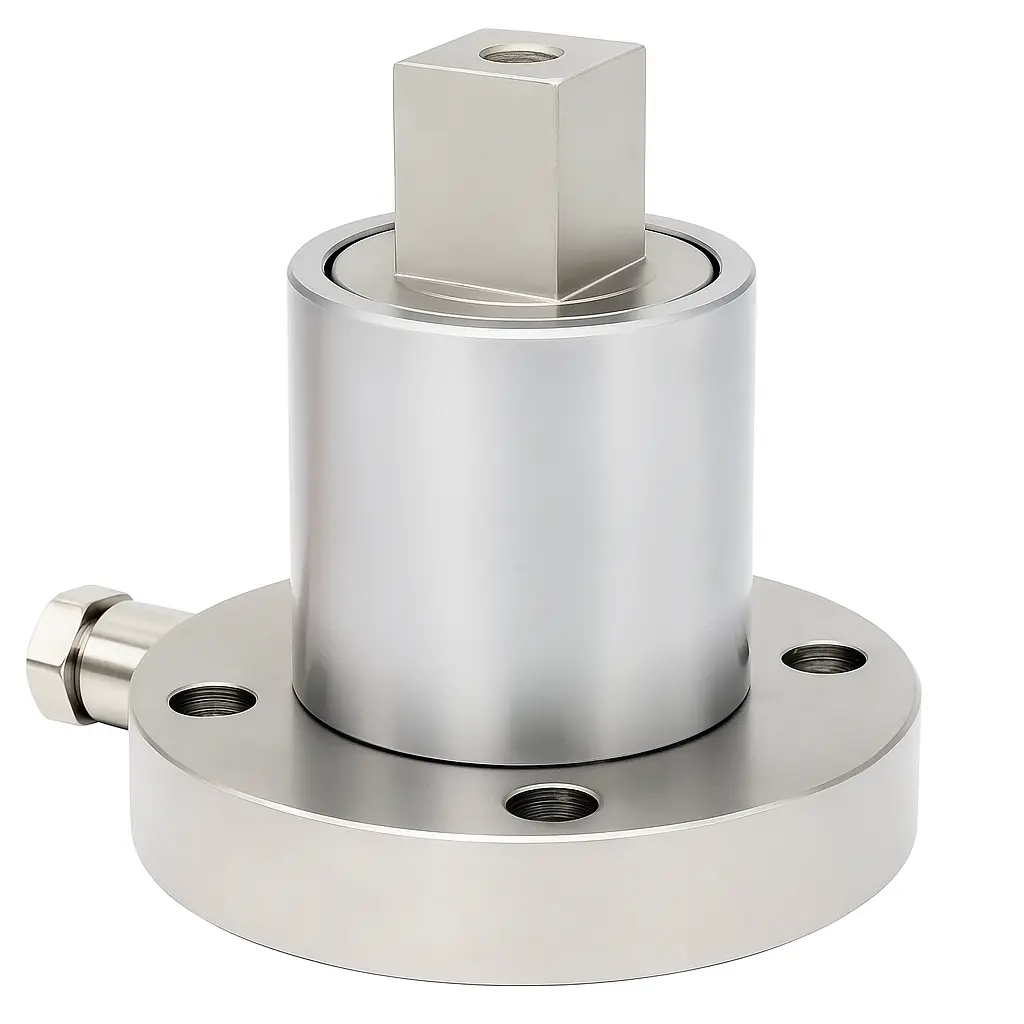

2000 Nm Load Cell - Static Torque Sensor & Transducer

High-performance load cell designed for precision applications with stable output and durable construction.

Specifications:

• Square Drive: 50 x 50 mm

• Torque Range: 400 - 2000 Nm

• Output Sensitivity: 1.0–2.0 mV/V

• Zero Output: ≤ ±2% F.S.

• Non-linearity: ≤ 0.3% F.S.

• Hysteresis: ≤ 0.1% F.S.

• Repeatability: ≤ 0.1% F.S.

• Creep (30 mins): ≤ 0.1% F.S.

• Temperature Sensitivity Drift: ≤ 0.05% F.S./10°C

• Zero Temperature Drift: ≤ 0.05% F.S./10°C

• Response Frequency: 10 kHz

• Material: Alloy Steel

• Impedance: 350Ω / 7000Ω

• Insulation Resistance: ≥5000 MΩ (100VDC)

• Excitation Voltage: 5–15V

• Operating Temperature Range: -20°C to +80°C

• Safe Overload: 120% of rated capacity

• Ultimate Overload: 150% of rated capacity

• Cable Specification: Ø 3mm x 3m length

Ideal for use in torque sensors, test machines, and force measurement systems requiring high accuracy and reliability.
