Project Overview

The Thylacine Field, located approximately 70 km south of Port Campbell, Victoria, in the Bass Strait, is undergoing expansion to support additional production. As part of this effort:

• Four additional wells have been drilled and completed.
• New subsea infrastructure, including pipelines, umbilicals, and manifolds, has been installed.
• The existing out-of-service flowline must be recovered and disposed of.

Subsea 7, our client, engaged us to manage the provision of Rock Bags, including:

• Engineering, manufacturing, inspection, and testing.
• Handling and installation equipment.

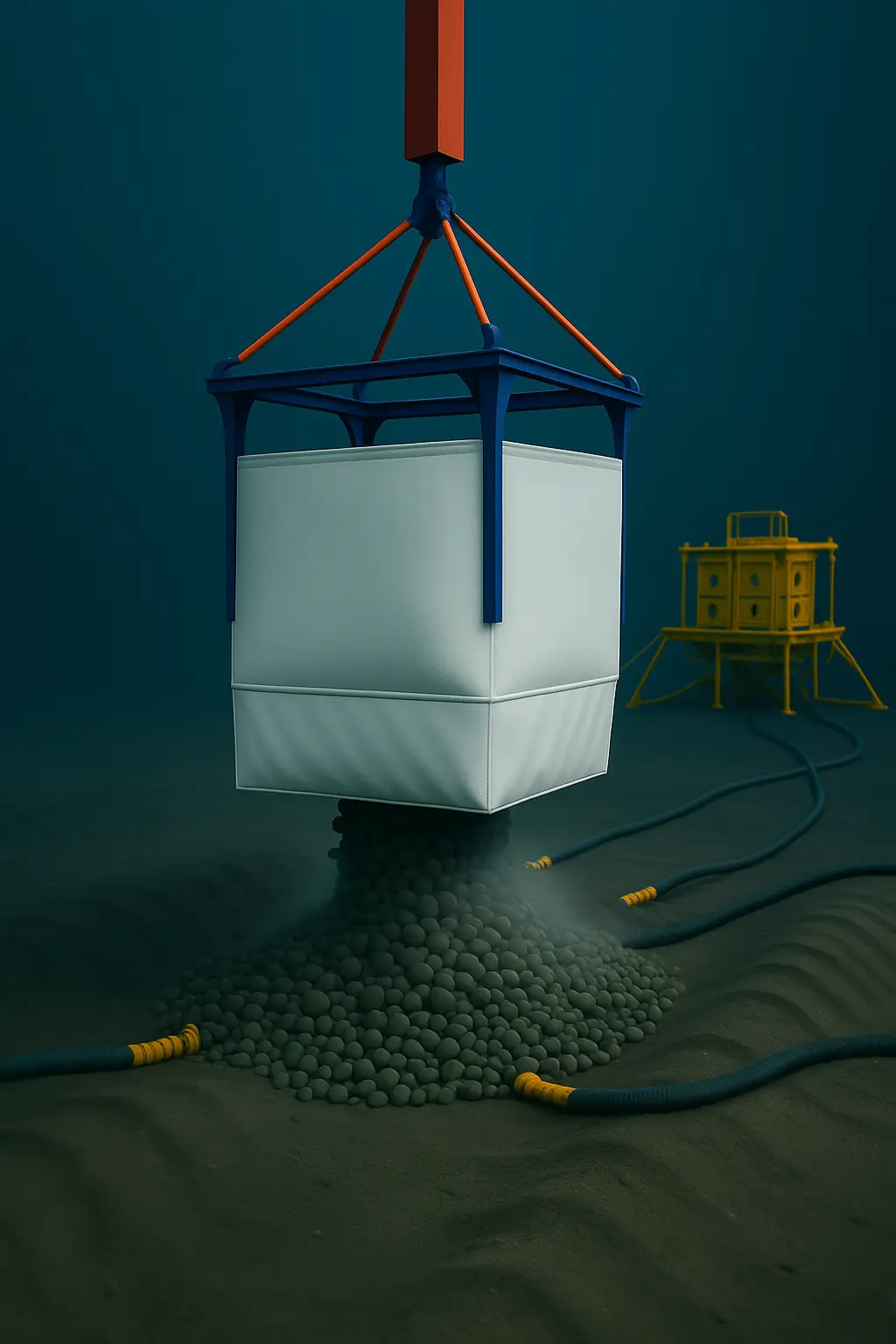

• Rock Bags featuring an ROV-activated bottom-opening mechanism for controlled release.
• Temporary use Rock Bags, designed to be recovered post-installation.

Challenges

• High Safety Standards: The client required a minimum safety factor of 10.
• Load Capacity: Bags needed to be rated at SWL 2 tonnes.
• Material Specifications: Rock fill had to be minimum 20mm diameter with a specific density to meet project requirements.

Solution Delivered

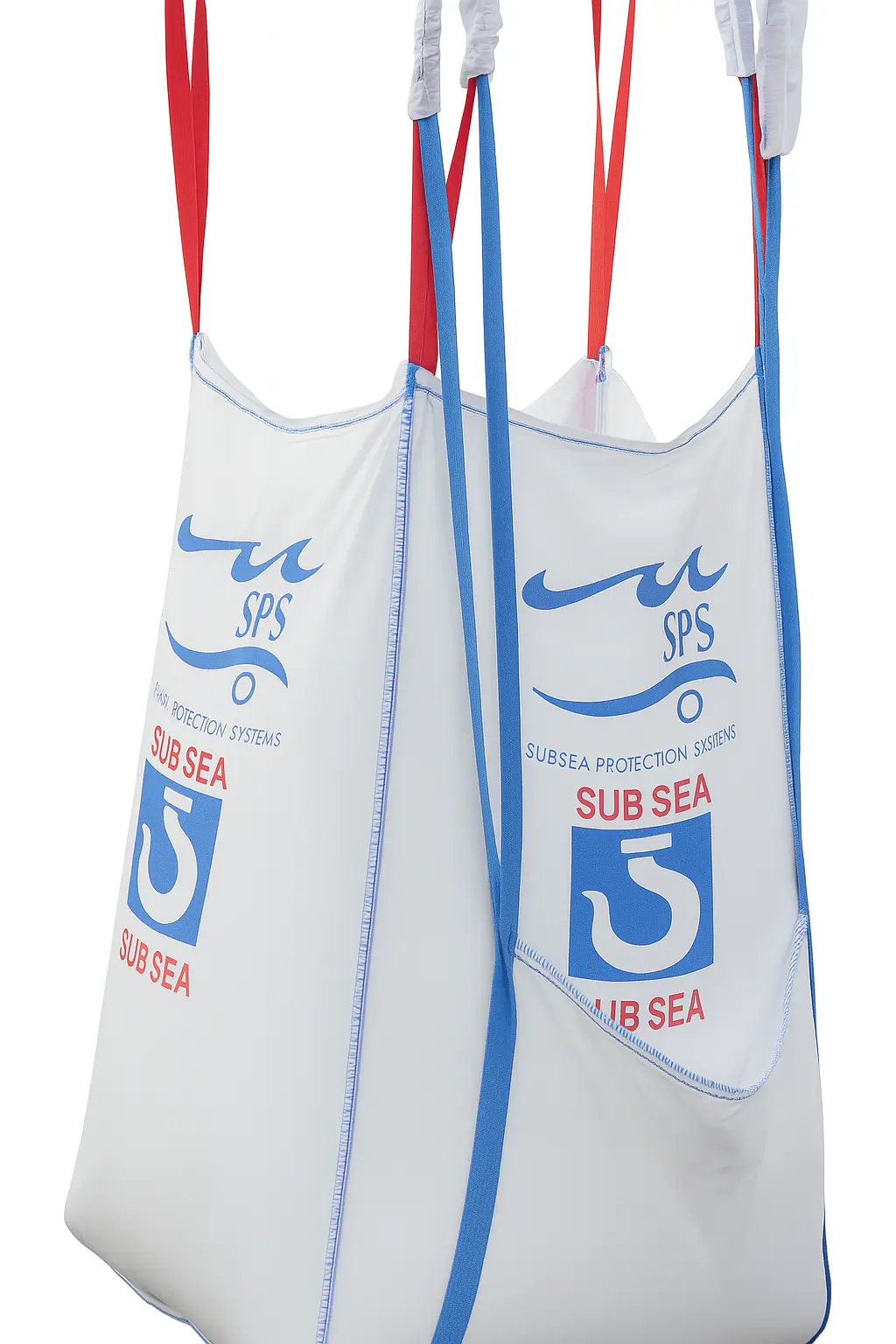

Oceanic Supply successfully provided 1-tonne Full Drop Bottom Bulka Bags, specifically designed for the project.

• The bags featured cuttable handles to release the bottom flap efficiently.

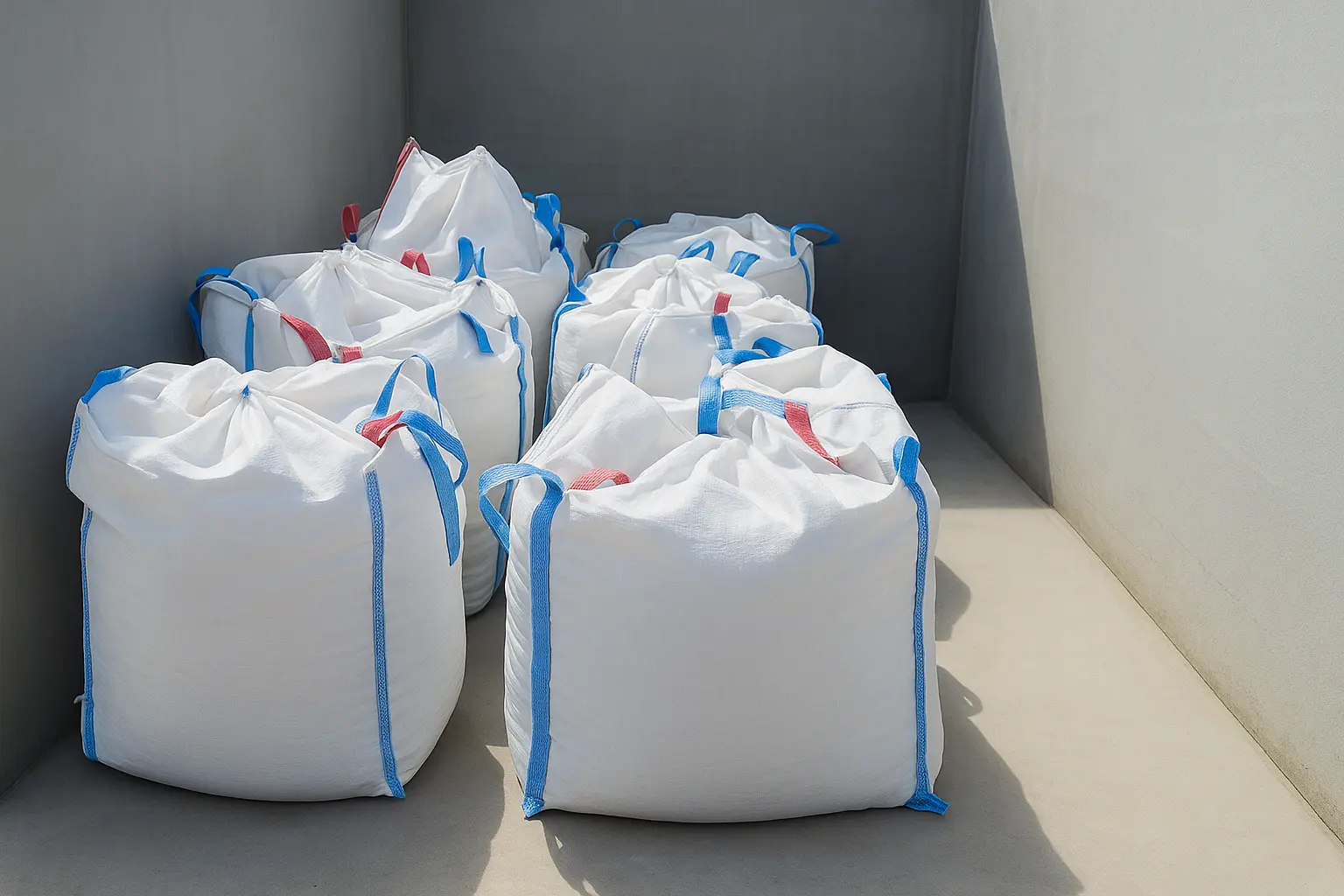

• We ensured the bags were pre-filled with rocks meeting the required specifications for seamless deployment.

By delivering a custom-engineered solution, we met the client's technical and operational requirements, ensuring safe and efficient rock dumping operations.
