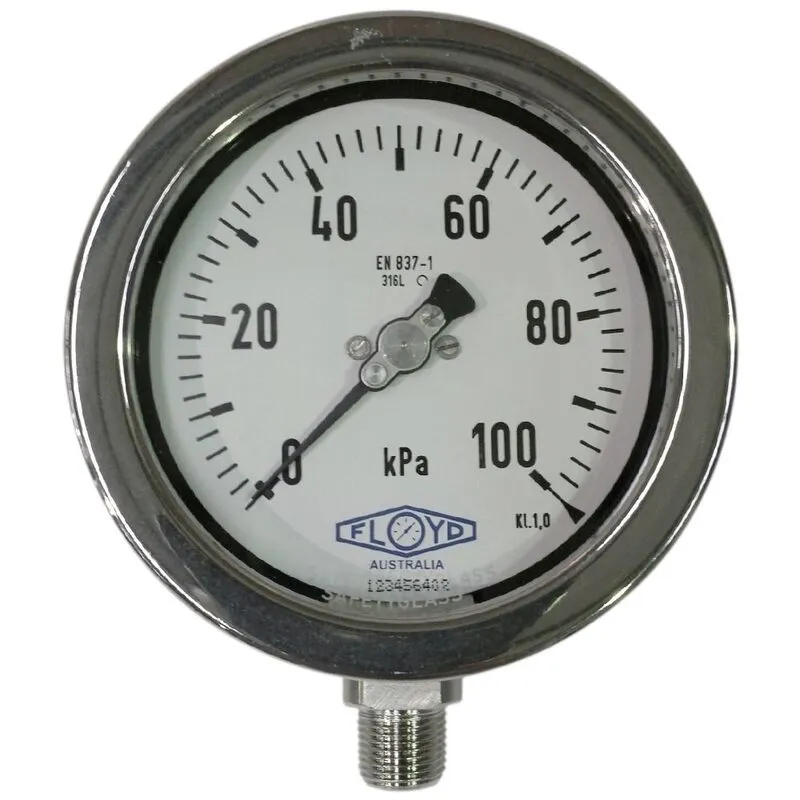

The Floyd Gauge Stainless Steel Pressure Gauge 0–100 kPa is a durable industrial pressure gauge designed for reliable low-pressure measurement across process, equipment and general industrial applications.
Featuring a large 100mm dial, the gauge provides clear and easy-to-read pressure indication. Its robust construction combines a 304 stainless steel case with a 316 stainless steel process connection, providing excellent durability for demanding industrial environments.
The gauge features a 0–100 kPa pressure range, direct mounting and a 1/2" NPT bottom-entry connection for straightforward installation into compatible pipework, machinery and process systems. The dry-case design makes it a practical choice for general pressure monitoring applications.
Key Features
- 0–100 kPa pressure range
- Large 100mm dial
- Direct mount design
- 1/2" NPT bottom entry
- Durable 304 stainless steel case
- 316 stainless steel process connection
- Dry case
- Clear and easy-to-read pressure scale
- Suitable for industrial and process pressure monitoring
Specifications
Brand: Floyd Gauge
Product Type: Stainless Steel Pressure Gauge
Product Code: PBX100AS09-1/2
Pressure Range: 0–100 kPa
Dial Diameter: 100mm
Mounting: Direct Mount
Connection Size: 1/2" NPT
Connection Position: Bottom Entry
Case Material: 304 Stainless Steel
Connection Material: 316 Stainless Steel
Case Type: Dry
