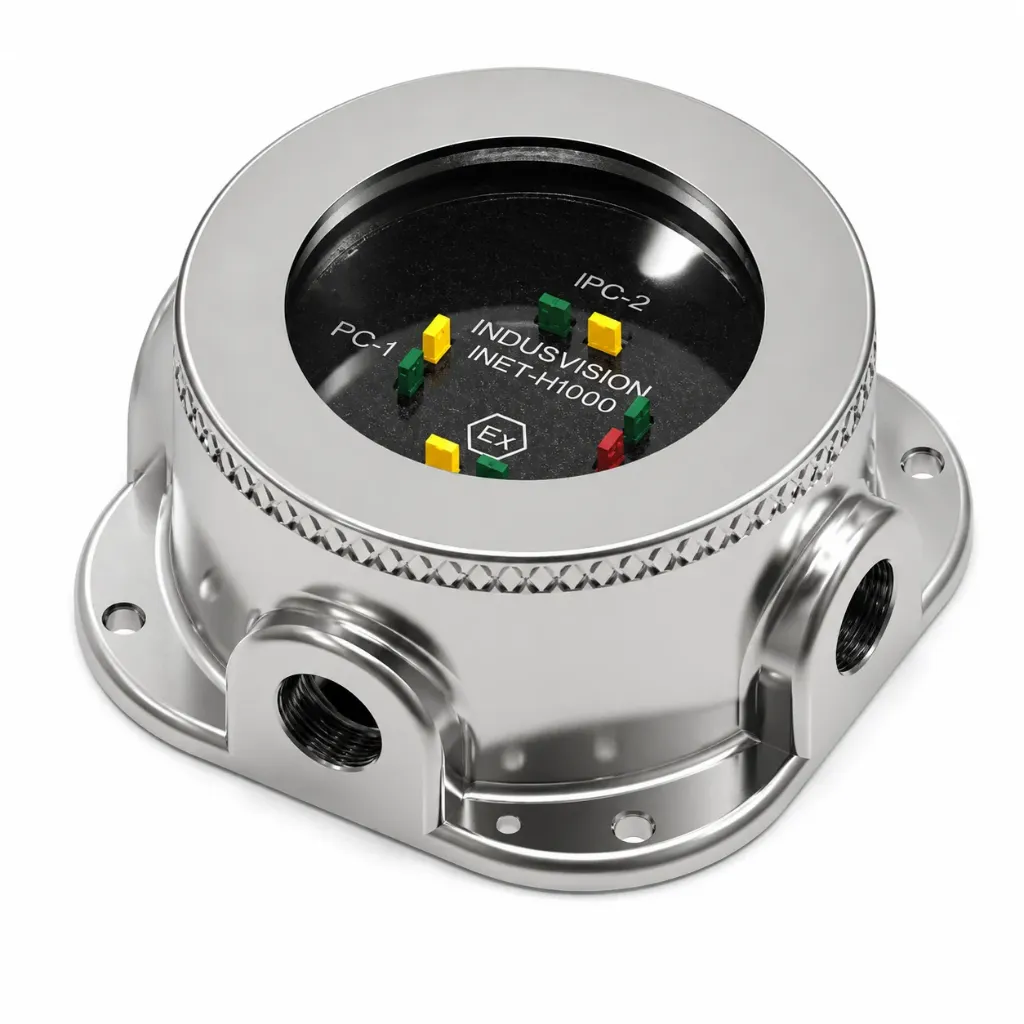

The INET-H1000 Explosion-Proof PoE Junction Box is a compact hazardous-area network accessory designed to support IP cameras and PoE surveillance equipment in demanding oil & gas, offshore, petrochemical, marine and industrial environments.

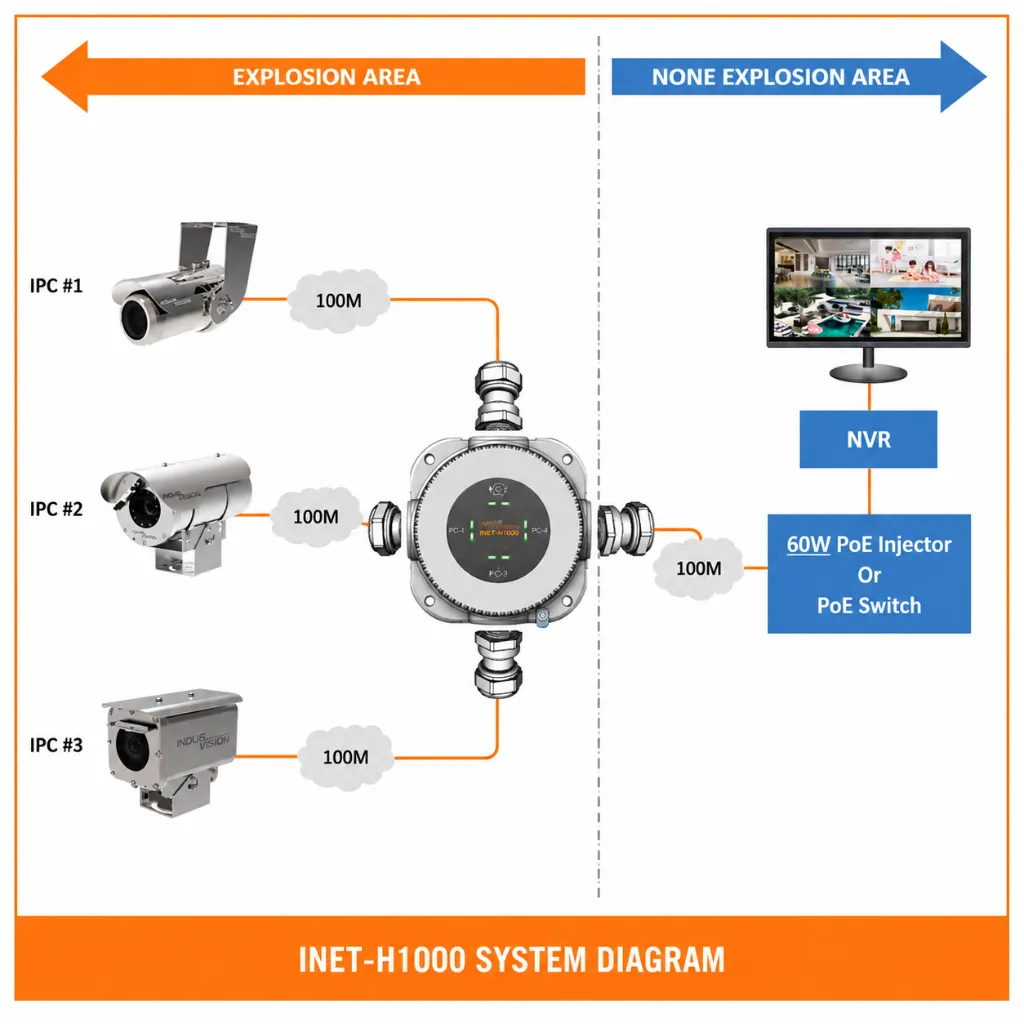

Featuring a built-in 4-channel PoE extender, the INET-H1000 provides a convenient connection and network distribution point for compatible hazardous-area IP surveillance systems.
Its ultra-compact nude-type enclosure is manufactured from electropolished AISI 316L stainless steel, providing excellent corrosion resistance for offshore and marine installations. IP66 ingress protection further protects the enclosure against dust and powerful water jets.
The INET-H1000 is specified with ATEX and IECEx hazardous-area certification, including Ex d IIC T6 Gb for explosive gas atmospheres and Ex tb IIIC T85°C Db for combustible dust environments, making it suitable for appropriately classified Zones 1, 2, 21 and 22.
Key Features
-
Explosion-proof PoE junction box
-
Built-in 4-channel PoE extender
-
Designed for IP camera and CCTV networks
-
Ultra-compact nude-type design
-
ATEX certified
-
IECEx certified
-
Gas: Ex d IIC T6 Gb
-
Suitable for Zone 1 & Zone 2
-
Dust: Ex tb IIIC T85°C Db
-
Suitable for Zone 21 & Zone 22
-
T6 temperature class
-
Electropolished AISI 316L stainless steel
-
IP66 ingress protection
-
Multiple cable entry points
-
Compact mounting footprint
-
Suitable for corrosive offshore and marine environments
-
Designed to complement explosion-proof IP camera installations
-
Additional listed certifications: KCs / JEPX / NEPSI / TS
