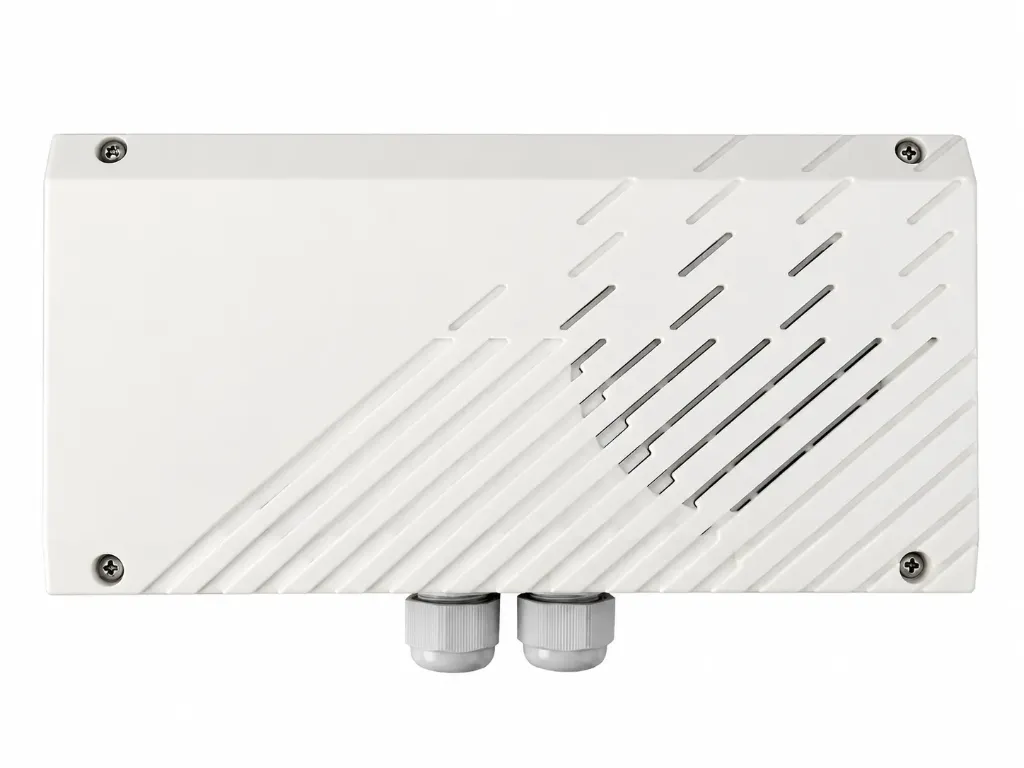

The IMCOS-5254 Wall Mounted Loudspeaker is a compact professional loudspeaker designed for marine public address (PA) and general alarm (GA) systems. Suitable for wall or ceiling installation, the IMCOS-5254 provides reliable voice reproduction and sound quality for onboard communication applications.
Featuring a durable ABS enclosure, 10W rated output and a choice of 100V line transformer or 8 Ohm configuration, the IMCOS-5254 is suited to shipboard PA installations where dependable audio distribution is required.
Key Features
- 10W rated power / 15W maximum power
- 100V line transformer or 8 Ohm options
- Six selectable transformer tapping levels
- Self-resetting fuse for audio line protection
- IP22 ingress protection
- Durable ABS enclosure
- White RAL 9010 finish
- Wall or ceiling mounting
- Frequency range: 150–20,000 Hz
- Sound pressure level: 88 dB at 1W/1m
- Operating temperature: -25°C to +70°C
The IMCOS-5254 provides six selectable power taps: 10W, 5W, 3.5W, 2.5W, 1.5W and 0.8W, allowing the loudspeaker output to be configured to suit the PA system design.
For availability, technical information or assistance sourcing the IMCOS-5254 Wall Mounted Loudspeaker, contact Oceanic Supply.
