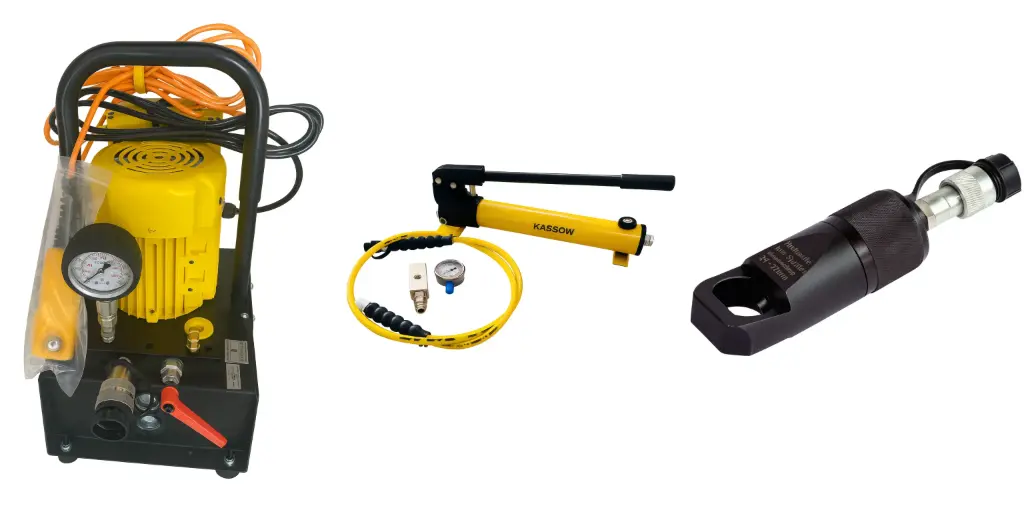

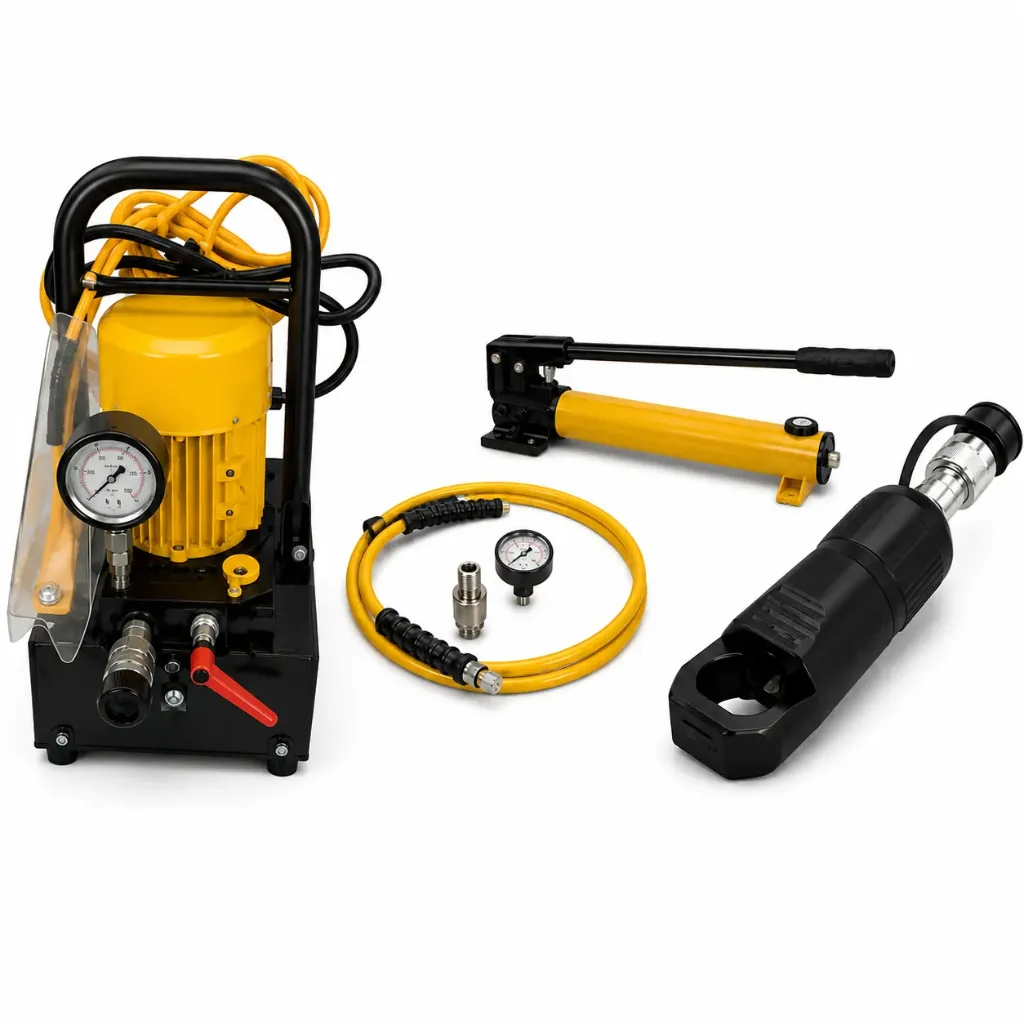

Hydraulic Nut Splitter with Electrical HPU and Hand Pump

Our Hydraulic Nut Splitter Kit is a reliable rental solution for safe and efficient removal of seized or corroded nuts without damaging bolts. Supplied complete with an electric HPU, hand pump, and compatible accessories, this versatile kit can be used across multiple nut splitter models.

Available Models & Hexagon Ranges

• NS-6075: 60–75 mm

• NC-2432: 24–32 mm

• NC-3241: 32–41 mm

• NC-4150: 41–50 mm

Electric HPU Specifications

• Double Acting Pump

• Valve type: Manual valve

• Flow: 4.5 L/min (1st stage) / 0.35 L/min (2nd stage)

• Power supply: 220V, 50Hz, single phase

• Motor power: 0.55 kW

• Supplied with 2 m hose

Hand Pump Specifications

• Oil Tank Capacity: 901 ml

• Working Pressure: 13 bar (1st stage), 700 bar (2nd stage)

• Plunger Displacement per Stroke: 11.26 ml (1st stage), 2.47 ml (2nd stage)

• Weight: 4 kg – compact and portable

• Supplied with pressure gauge, gauge adapter, quick coupler (female part), and 2 m long hose
