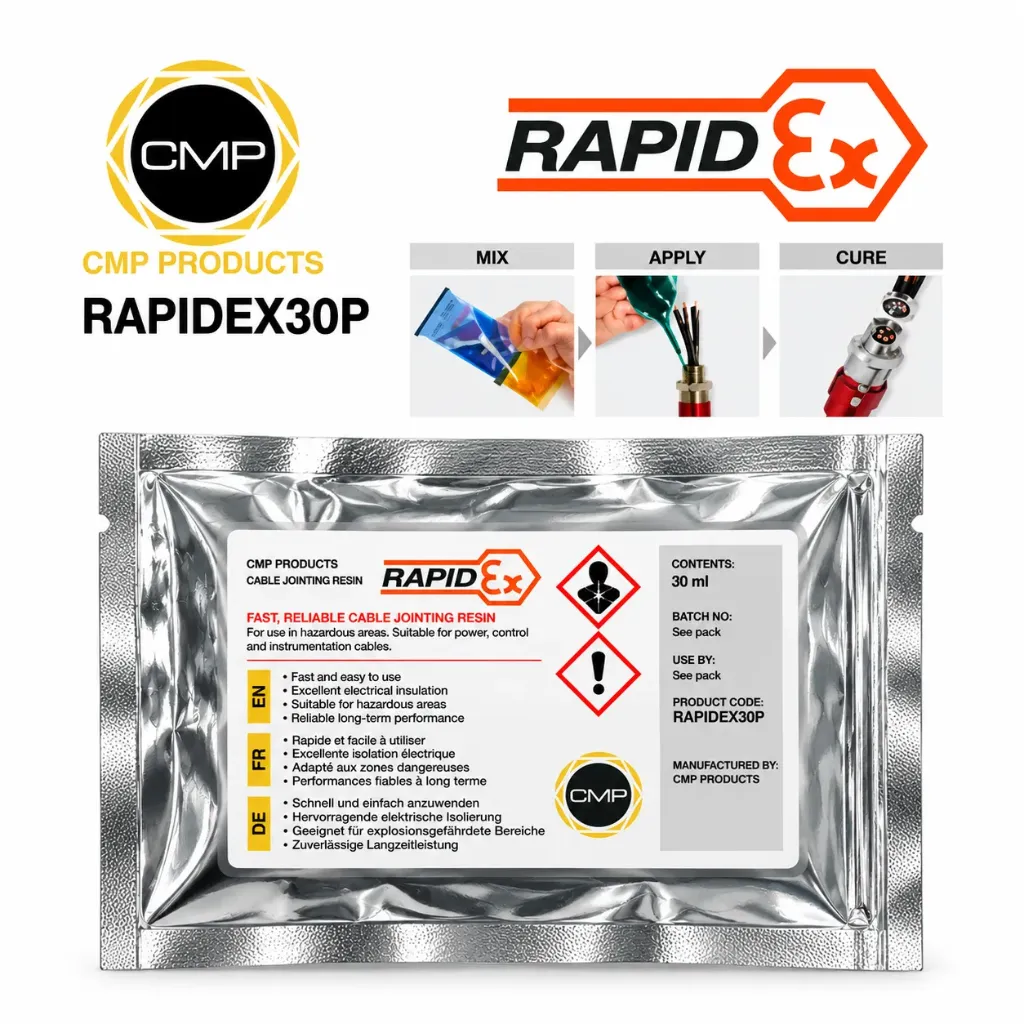

CMP RapidEx™ is a fast-curing, liquid-pour resin barrier sealing system developed for use with compatible CMP barrier cable glands and unions in hazardous-area electrical installations.
Its low-viscosity formulation flows between and around individual cable conductors, helping displace trapped air within the cable gland sealing chamber and create a complete barrier around the cable cores. This approach reduces the risk of voids associated with traditional hand-packed sealing compounds.
RapidEx is designed for fast, clean application. CMP states that the resin installs in seconds and fully cures in less than 40 minutes at 20°C, helping reduce installation time while providing a reliable gas-blocking barrier seal.
Key Features
-
Fast-curing liquid resin barrier seal
-
Low-viscosity formulation flows around individual cable conductors
-
Helps eliminate air pockets and voids within the sealing chamber
-
Provides an effective gas-blocking barrier
-
Clean and straightforward mixing and application
-
Designed to reduce cable gland installation time
-
Suitable for multi-core cable applications
-
Used with compatible CMP barrier cable glands and unions
-
Designed for hazardous and explosive-atmosphere installations
-
Fully cures in less than 40 minutes at 20°C
-
RapidEx systems are available within CMP's globally certified barrier cable gland range
