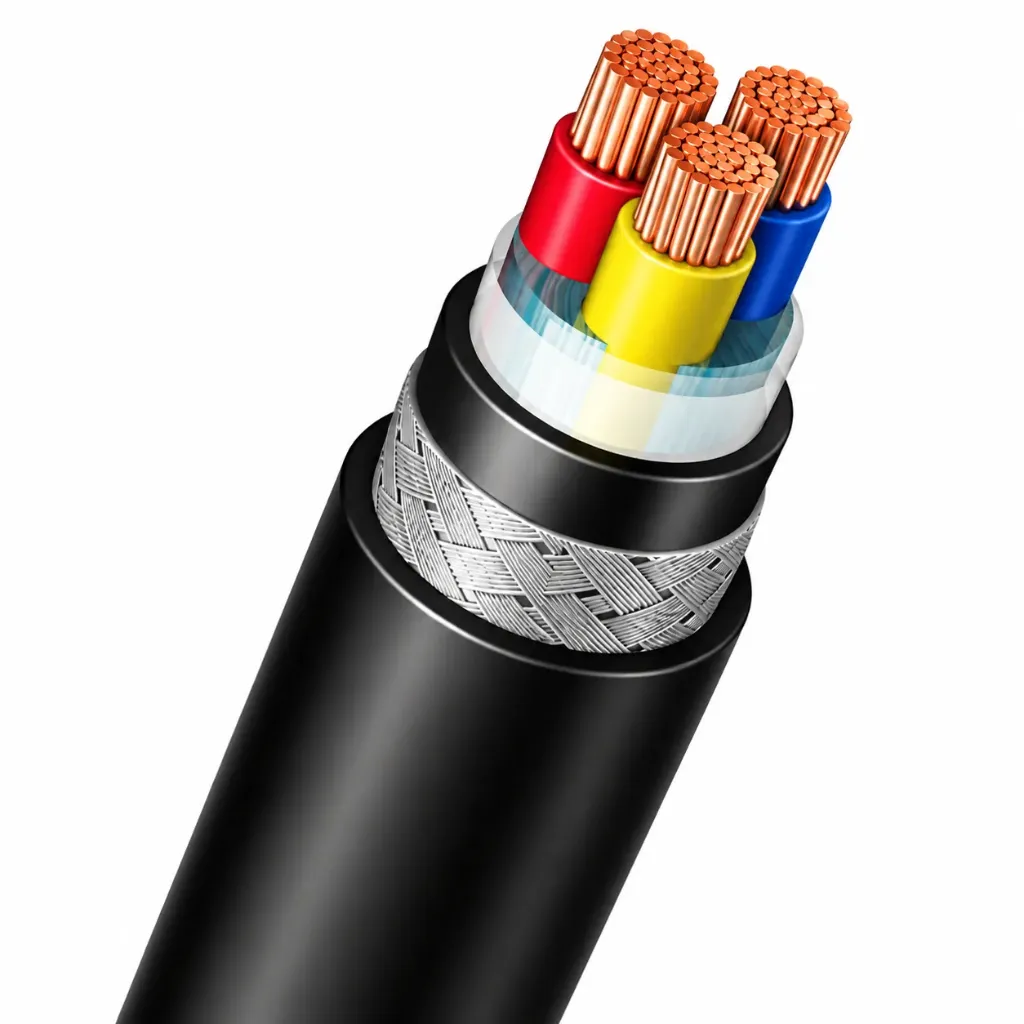

The CEPF96/SC 0.6/1kV EPR Insulated Marine & Offshore Power Cable is a heavy-duty, low-smoke halogen-free armoured power cable designed for fixed electrical installations aboard ships, marine vessels and offshore facilities.
The cable features tinned copper conductors with EPR (ethylene propylene rubber) insulation, providing reliable electrical performance in demanding marine environments. A galvanised steel wire braid armour provides mechanical protection, while halogen-free thermoplastic polyolefin inner and outer sheaths provide a low-smoke, halogen-free cable construction.
CEPF96/SC is rated 0.6/1kV and designed around the IEC 60092 marine cable framework. The /SC designation identifies a bunched flame-retardant construction, with published CEPF96/SC specifications referencing IEC 60332-3 Category A performance.
Its combination of EPR insulation, steel wire braid armour, LSZH construction and flame-retardant performance makes CEPF96/SC suitable for power distribution, lighting and other fixed electrical circuits in marine and offshore installations, including areas where mechanical protection and reduced smoke and corrosive gas emissions are important.
Key Features
-
0.6/1kV rated voltage
-
EPR insulated marine power cable
-
Tinned copper conductors
-
Galvanised steel wire braid (GSWB) armour
-
SHF1-type thermoplastic polyolefin sheath
-
Low Smoke Zero Halogen (LSZH) construction
-
Bunched flame-retardant /SC design
-
Designed for fixed marine electrical installations
-
Suitable for power and lighting circuits
-
Suitable for ships and offshore installations
-
Mechanical protection from steel wire braid
-
Wide range of core configurations and conductor sizes available
