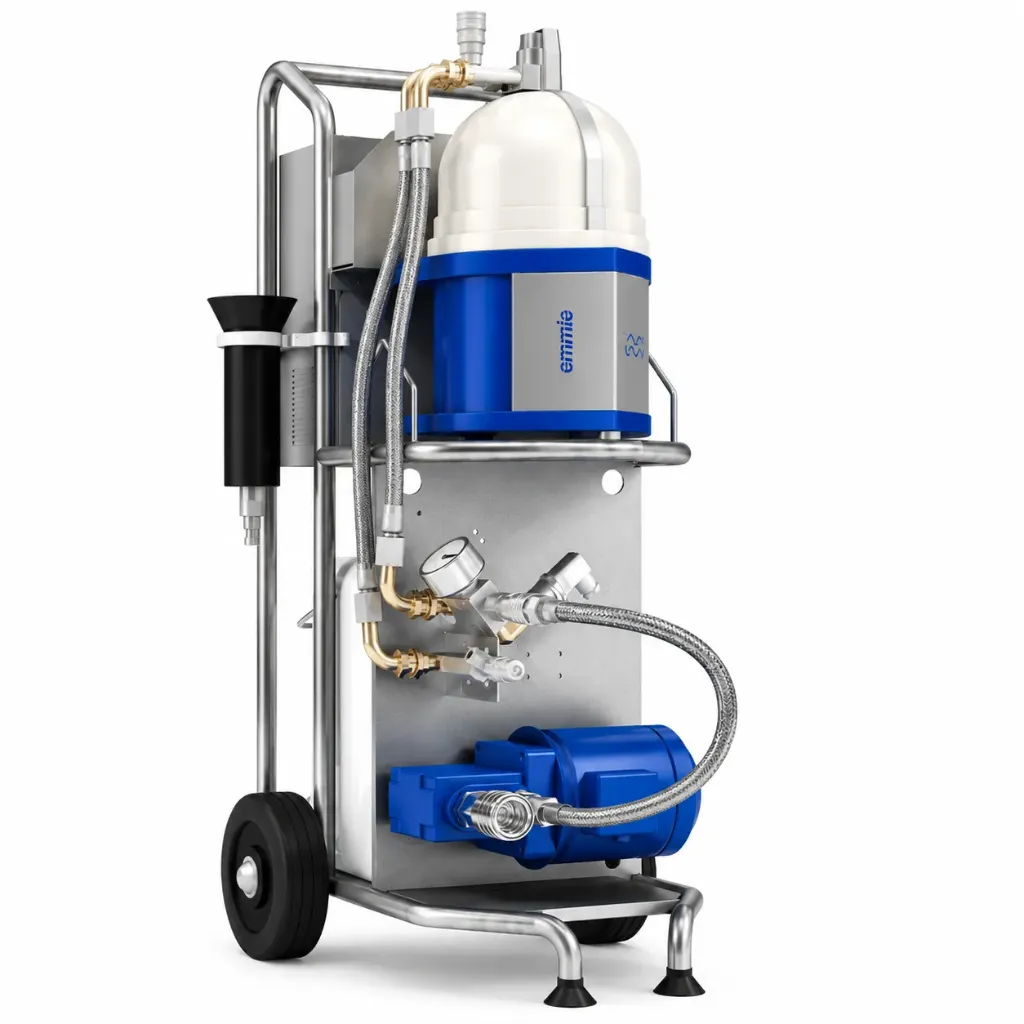

The Alfa Laval Emmie is a compact mobile oil cleaning and separation system designed for efficient treatment of lubricating and hydraulic oils.
Built around centrifugal separation technology, Emmie provides an effective solution for removing contaminants from oil, helping maintain oil cleanliness and support reliable operation of valuable machinery and equipment.
Its mobile trolley-mounted design allows the unit to be moved between compatible equipment and oil systems, making it particularly useful for marine, industrial, power generation and maintenance applications where a flexible oil-cleaning solution is required.
Technical Data
|
| Brand | Alfa Laval |
| Product Range | Emmie |
| Product Type | Mobile Oil Cleaning & Separation System |
| Application | Mineral oil-based hydraulic oils |
| Viscosity Grade | VG 15–150 |
| Flow Rate | 80–120 L/h |
| Separation Temperature | 35–65°C |
| Separator Type | Solid bowl separator, manually cleaned |
| Separator Weight | 15 kg (separator alone) |
| Bowl Sludge Space | 0.6 L |
| Bowl Speed | 7,300 rpm |
| Heater – Low Load | 700 W |
| Heater – Full Load | 2,100 W |
| Heat Load | 1.1 W/cm² |
| Electrical Supply | (110 V) 230 V, single phase |
| Frequency | 50/60 Hz |
| Total System Amperage | 10A / 14A (heater low-load / full-load) |
