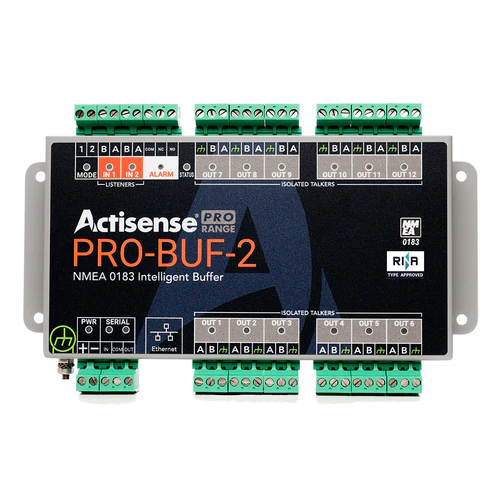

The Actisense PRO-BUF-2 is a professional-grade NMEA 0183 buffer and data distribution unit, designed to reliably manage and expand marine data networks. With 2 opto-isolated inputs and 12 ISO-Drive outputs, it ensures safe, interference-free signal distribution across multiple onboard devices.
Equipped with both Ethernet and serial connectivity, the PRO-BUF-2 offers flexible configuration and remote diagnostics, making it ideal for modern marine systems.
🔧 Key Features:
-
2 opto-isolated NMEA 0183 inputs
-
12 ISO-Drive outputs for multi-device distribution
-
Ethernet port for configuration and diagnostics
-
Serial port for direct communication
-
Electrical isolation prevents ground loops and interference
-
Pluggable screw terminals for secure, easy installation
-
Compact and robust design for marine environments
⚙️ Specifications:
-
Model: PRO-BUF-2
-
Protocol: NMEA 0183
-
Inputs: 2 (Opto-isolated)
-
Outputs: 12 (ISO-Drive)
-
Connectivity: Ethernet + Serial
-
Terminals: Pluggable screw terminals
-
Application: Marine data distribution
