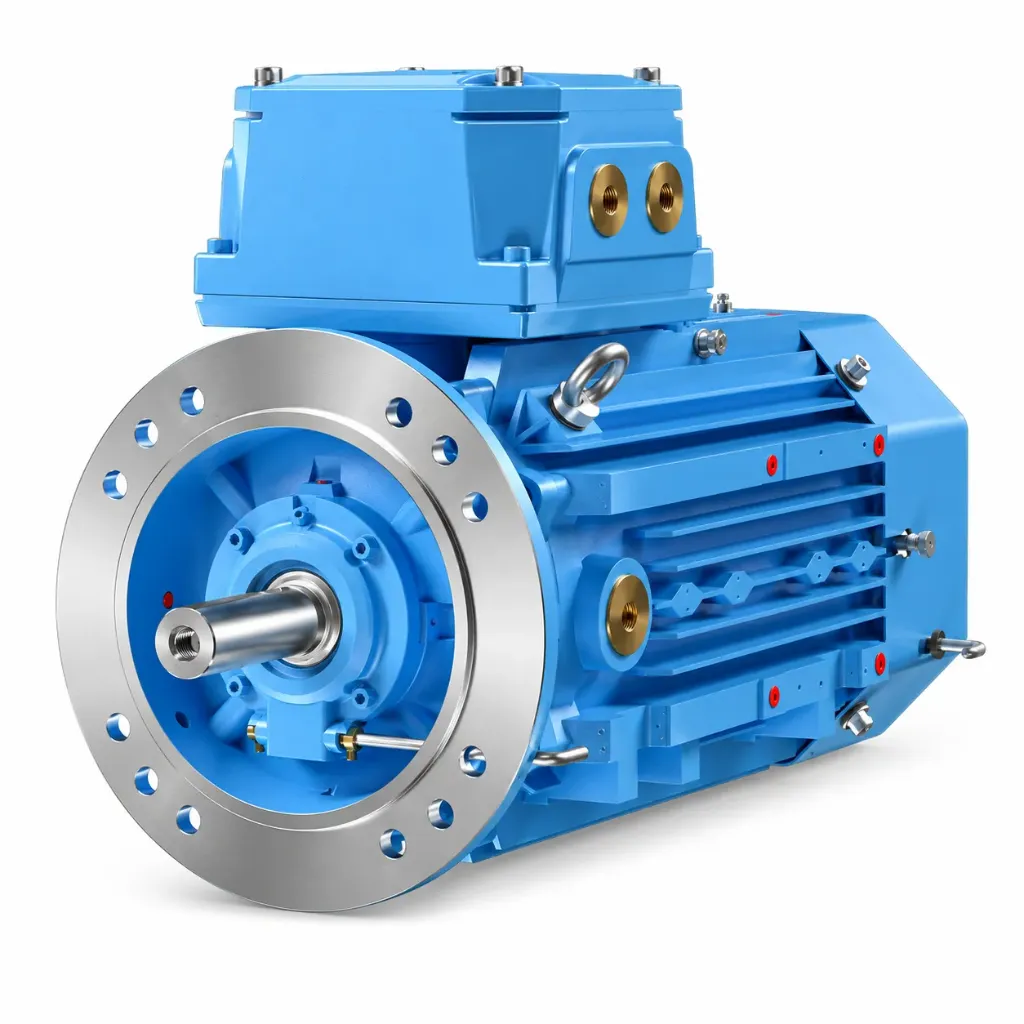

The ABB M3JP 160MLE 4 (3GJP162450-ADH) is a heavy-duty 3-phase squirrel cage induction motor engineered for operation in explosive gas atmospheres and demanding industrial environments.
Featuring a robust cast iron frame and flameproof Ex db IIB protection, the motor delivers 15 kW rated output with a 4-pole configuration and approximately 1470 rpm at 50 Hz. Its voltage configuration supports 400/415 V delta and 690 V star, making it suitable for a wide range of industrial electrical installations.

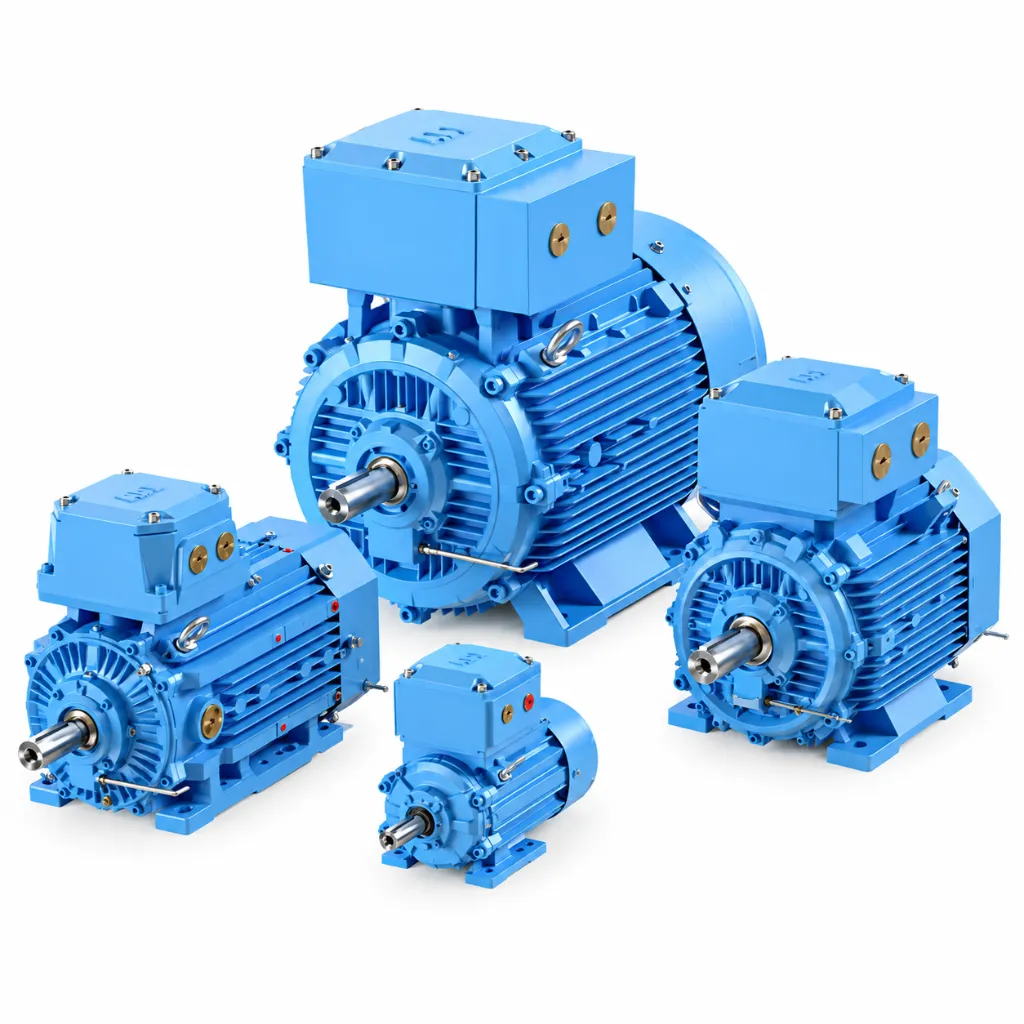

The M3JP series incorporates IP55 ingress protection, IC411 cooling, Class F insulation and continuous S1 duty, providing dependable performance for pumps, compressors, fans, conveyors and other machinery operating in hazardous-area applications.
Key Features
-
Brand: ABB
-
Product Code: 3GJP162450-ADH
-
ABB Type: M3JP 160MLE 4
-
Motor Type: 3-phase squirrel cage induction motor
-
Rated Output: 15 kW
-
Poles: 4
-
Frequency: 50 Hz
-
Voltage: 400 V Δ / 415 V Δ / 690 V Y
-
Speed: approx. 1467–1470 rpm
-
Efficiency Class: IE2
-
Efficiency: 92.0% at full load
-
Protection: Flameproof Ex db
-
Gas Group: IIB
-
Temperature Class: T4
-
Ingress Protection: IP55
-
Cooling: IC411
-
Insulation: Class F
-
Frame Size: 160
-
Frame Material: Cast iron
-
Mounting: IM B3 / IM1001 foot mounted
-
Duty: S1 continuous
-
Net Weight: approx. 255 kg
