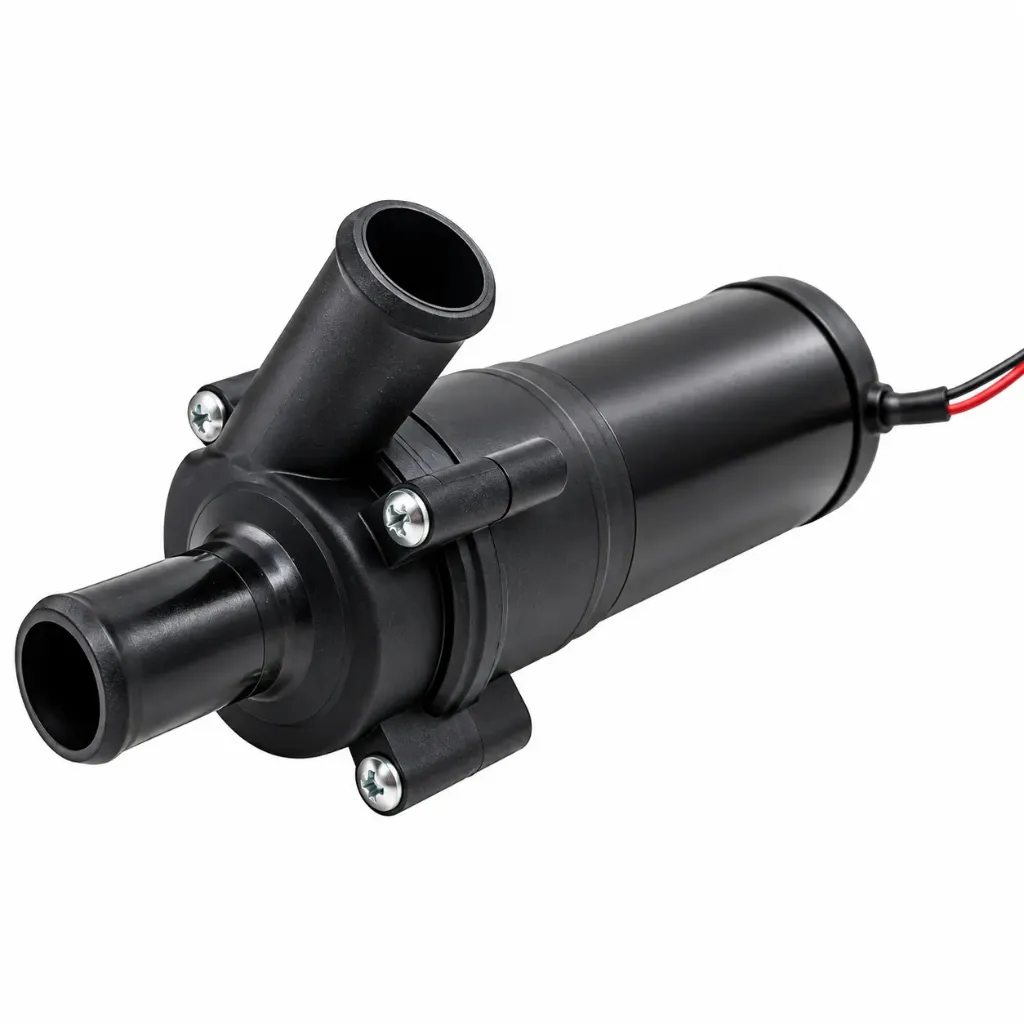

The Johnson Pump CM30P7-1 Circulation Pump (10-24503-04) is a compact 24V DC magnetic-drive circulation pump designed for reliable continuous circulation of water and water/glycol mixtures.
Featuring 16mm (5/8") hose connections, the CM30P7-1 delivers approximately 20 L/min at 0.1 bar and is suitable for heating, cooling and liquid-circulation systems in marine, vehicle and industrial applications. The magnetic-drive design provides a robust, seal-free pumping arrangement, while the enclosed IP67 permanent-magnet motor is designed for continuous operation.
Key Features
- Brand: Johnson Pump / SPX FLOW
- Model: CM30P7-1
- Manufacturer Part No.: 10-24503-04
- Voltage: 24V DC
- Connection: Ø16mm (5/8") hose
- Capacity: 20 L/min at 0.1 bar
- Maximum input power: 27W
- Maximum system pressure: 2.5 bar / 36 psi
- Liquid temperature: -40°C to +100°C
- Suitable liquids: Fresh water and water/glycol mixtures up to 60% glycol
- Motor protection: IP67
- Designed for continuous operation
- Pump body: PPA thermoplastic
- Stainless-steel shaft
- Maximum dry-running period: 30 minutes
Typical applications include circulation of water or antifreeze in marine vessels, boats, vehicles, heating systems and cooling systems, as well as other applications where self-priming is not required.
