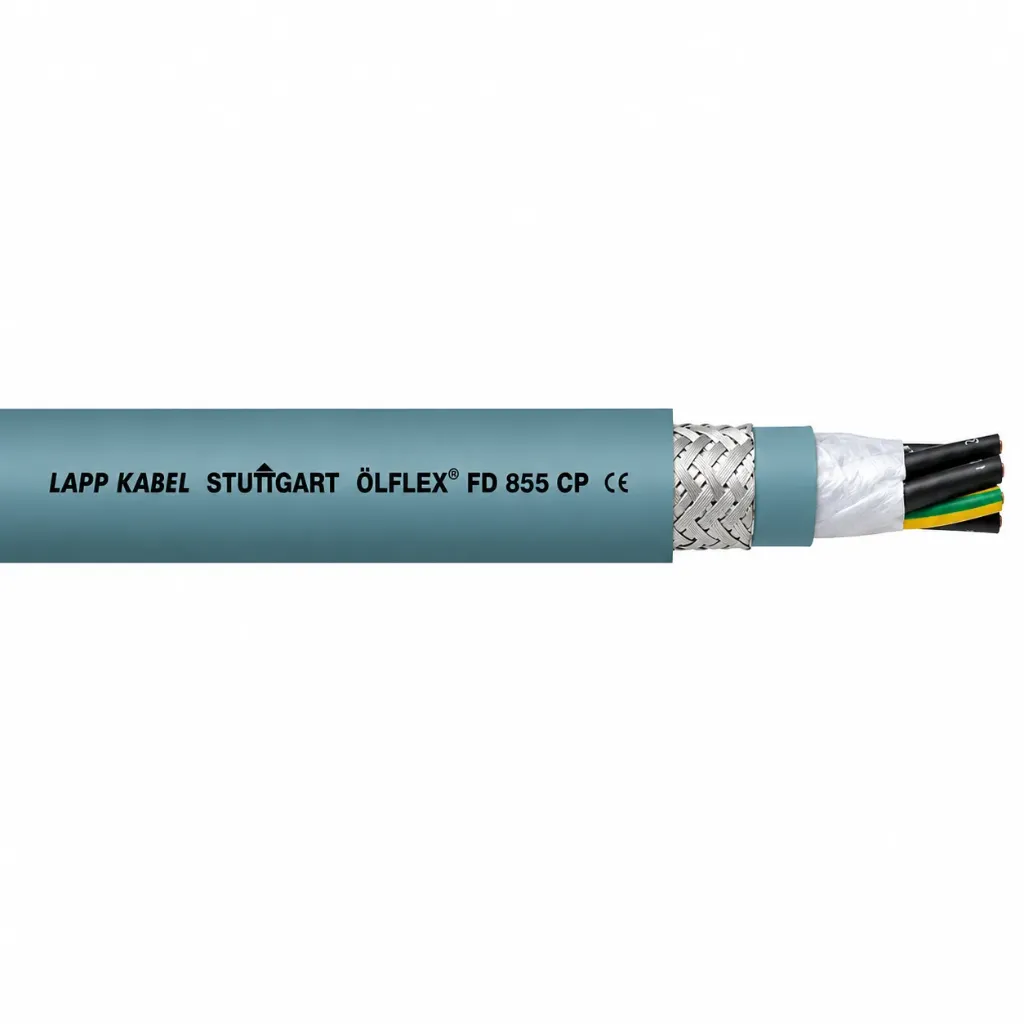

The LAPP ÖLFLEX® FD 855 CP 30G1 is a highly flexible, screened control cable engineered for demanding dynamic applications requiring continuous movement, reliable EMC performance and high mechanical durability.
Featuring 30 conductors (29 numbered cores + protective earth), the cable combines a robust PUR outer sheath with halogen-free construction and an overall screening braid. It is particularly suited to industrial machinery, automated production equipment and applications involving power chains and continuously moving machine parts.
The ÖLFLEX® FD 855 CP range combines high flexibility with resistance to demanding industrial conditions, making it an excellent choice where conventional control cables may not provide sufficient durability.
Key Features
-
Genuine LAPP ÖLFLEX® FD 855 CP
-
Configuration: 30G1
-
30 conductors – 29 numbered cores + protective earth
-
Nominal conductor cross-section: 1 mm²
-
Highly flexible control cable
-
Designed for continuous flexing applications
-
Suitable for power-chain / drag-chain installations
-
Screened construction for improved EMC performance
-
Copper screening braid
-
Robust PUR outer sheath
-
Halogen-free
-
UL certified / approved construction
-
Fine-wire stranded conductors for high flexibility
-
Designed for demanding industrial environments
-
Suitable for machinery and automation applications
-
Resistant construction for applications involving mechanical stress
Technical Specifications
|
| Brand | LAPP |
| Product Range | ÖLFLEX® FD 855 CP |
| Cable Type | Highly Flexible Screened Control Cable |
| Configuration | 30G1 |
| Number of Conductors | 30 |
| Core Configuration | 29 + Protective Earth |
| Conductor Size | 1 mm² |
| Screened | Yes |
| Outer Sheath | PUR |
| Halogen-Free | Yes |
| Application Type | Continuous Flex / Dynamic |
| Typical Installation | Power Chains / Moving Machinery |
| Certification | UL Certified / Approved* |
